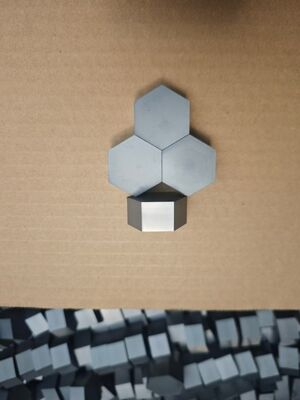

Cost Optimized Silicon Carbide Ballistic Tile NIJ Level III 100x100x8mm SiC Armor Plate
商品の詳細:
| 起源の場所: | 湖南省、中国 |
| ブランド名: | High Broad |
| 証明: | ISO 9001:2015, NIJ 0101.06 |
| モデル番号: | シックタイル |
| 書類: | SIC Ballistic Armor Tiles-P...ad.pdf |
お支払配送条件:
| 最小注文数量: | 200kgs |
|---|---|
| 価格: | USD20.00-40.00/kg |
| パッケージの詳細: | EPE フォームトレイ (トレイあたり 25 タイル) + 輸出グレードの合板ケースにバルク梱包 |
| 受渡し時間: | 在庫に5〜7営業日、生産に10〜15日 |
| 支払条件: | T/T、L/C、ウェスタンユニオン |
| 供給の能力: | 1 か月あたり 80,000 個 |
|
詳細情報 |
|||
| 曲げ強度: | 350～420MPa | タイルのサイズ: | 100x100mm |
|---|---|---|---|
| 破壊靱性: | 3.2～4.2MPa・m1/2 | 厚さ: | 8.0mm |
| 面積密度: | ≤36kg/㎡ | 密度: | 3.08～3.18 g/cm3 |
| ハイライト: | Cost Optimized SiC Tile,Bulk Supply Ballistic Ceramic,NIJ III Industrial Grade Plate |
||
製品の説明
NIJ Level III | Industrial Grade | High Volume Production | Competitive Pricing
- High Volume Capability
- 80k Pieces/Month
- Batch Consistency Guaranteed
Our cost-optimized industrial grade SiC tile is purpose-built for high-volume armor programs. By utilizing industrial-grade SiC feedstock and our high-throughput atmospheric sintering line, we have narrowed the price gap between SiC and Al₂O₃ to within 15-25%—while delivering 70% higher hardness and 15-20% lower areal density.
For programs currently specifying Al₂O₃ tiles, upgrading to our cost-optimized SiC means better protection with minimal budget impact. For programs using B₄C, it represents an opportunity to reduce ceramic material costs by 50-60% while maintaining protection integrity.
| Material | Approx. Cost/Tile | Cost per 1000 Units | Savings vs Al₂O₃ Hardness Bonus |
|---|---|---|---|
| HB SiC (CG Grade) | $12-$22 | $12,000-$22,000 | +70% Hardness |
| Al₂O₃ (Standard) | $10-$18 | $10,000-$18,000 | Baseline |
| B₄C (Hot Pressed) | $35-$60 | $35,000-$60,000 | 3x Cost |
Our dedicated SiC armor tile production line can deliver up to 80,000 standard tiles per month with 15-day lead time for production orders, ensuring reliable supply for large-scale programs.
Every production batch undergoes SPC monitoring of key parameters (density, hardness, dimensions). Certificate of Analysis (CoA) provided with each shipment for full traceability.
Industrial-grade SiC powder with controlled particle size distribution ensures consistent sintering behavior and mechanical properties across production batches—critical for certified armor programs.

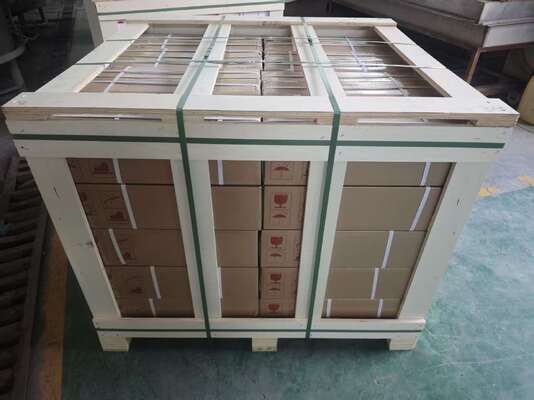

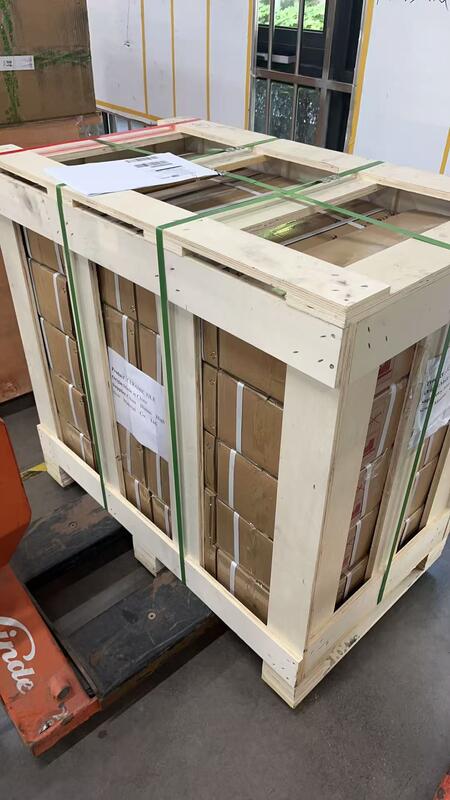

Available in 25-tile EPE foam trays or custom packaging configurations. Vacuum-sealed moisture barrier bags available for long-term storage requirements.
Upgrade your armor program to SiC—request a volume quote today
Email: janehu@hbnewmaterial.com | Batch samples available for evaluation
