Silicon Carbide Ballistic Tile Kit with 400x400mm Panel Size and Field Replaceable Tiles for NIJ Level III Protection
商品の詳細:
| 起源の場所: | 湖南省、中国 |
| ブランド名: | High Broad |
| 証明: | ISO 9001:2015, NIJ 0101.06 |
| モデル番号: | シックタイル |
| 書類: | SIC Ballistic Armor Tiles-P...ad.pdf |
お支払配送条件:
| 最小注文数量: | 1000個 |
|---|---|
| 価格: | USD 0.1-1/pieces |

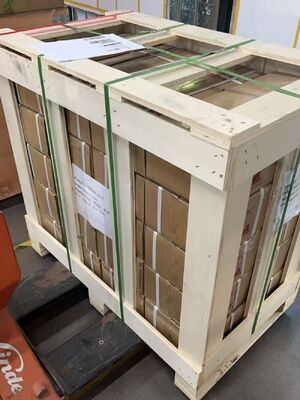

| パッケージの詳細: | キットは配置ガイド付き EPE フォームトレイに梱包 + 輸出グレードの合板ケース付き |
| 受渡し時間: | 在庫に7〜10営業日、生産に20〜25日 |
| 支払条件: | T/T、L/C、ウェスタンユニオン |
| 供給の能力: | 5000000 KGS/月 |
|
詳細情報 |
|||
| 密度: | 3.10-3.15 g/cm3 (タイル) | 曲げ強度: | 380～450MPa |
|---|---|---|---|
| タイルのサイズ: | 400x400mm（パネル組立済み） | 面積密度: | ≤36 kg/m² (組み立て済み) |
| 破壊靱性: | 3.5～4.5MPa・m1/2 | 厚さ: | 8.0mm (タイル) / 16mm (合計) |
| ハイライト: | SiC Tile Array Kit,Modular Strike Face System,NIJ III Protection Panel |
||
製品の説明
Silicon Carbide Ceramic Ballistic Tile Array Kit NIJ Level III Modular Strike Face Protection 400x400mm Panel Kit
SiC Ballistic Tile Array Kit - Modular Protection System
NIJ Level III | Complete 400x400mm Assembly | Field Replaceable Tiles
- All-In-One Kit
- Field Serviceable
- Template Guided Assembly
Complete Kit, Ready to Assemble
The High Broad is a China tile array kit containing everything needed to build a 400x400mm NIJ Level III strike face panel. Each kit includes: 16 precision-ground 100x100mm SiC tiles, a laser-cut adhesive template, edge-gap spacers, and perimeter sealing components. The modular design means individual damaged tiles can be field-replaced without scrapping the entire panel—dramatically reducing lifecycle costs. For organizations currently using B4C tile kits, switching to our SiC kit typically reduces procurement costs by 40-50% without measurable protection degradation.
Kit Contents
16x SiC Tiles (100x100x8mm), 1x Laser-Cut Adhesive Template, Edge-Gap Spacers, Perimeter Sealing Strip, Assembly Instruction Card, Batch Traceability Certificate.
Lifecycle Cost Advantage
Field-replaceable tiles mean a damaged panel doesn't require complete replacement. Replace only affected tiles at ~$35 each vs scrapping a $500+ B4C monolithic panel—an 85%+ repair cost reduction.
Standardized Interface
The 400x400mm panel dimension is a widely adopted standard for vehicle add-on armor. Kits can be combined side-by-side for larger coverage areas with consistent seam spacing between panels.
Batch Traceability Included
Each kit ships with a unique batch number linking all 16 tiles to their sintering lot, hardness test results, and dimensional inspection report—full material genealogy for quality assurance.
Kit Specifications
| Assembled Panel Size | 400 x 400 mm |
| Tile Count per Kit | 16 (4x4 array) |
| Individual Tile Size | 100 x 100 x 8 mm |
| Tile Material | Pressureless Sintered SiC |
| Inter-Tile Gap | 1.5 ± 0.2 mm |
| Edge Chamfer | 0.3mm x 45° on all tiles |
| Template Material | Laser-Cut Acrylic (Reusable) |
| Kit Weight | ~4.8 kg (tiles only) |
Upgrade to modular SiC tile kits—lower cost, easier maintenance
Email: janehu@hbnewmaterial.com
Custom kit configurations and volume discounts available
Custom kit configurations and volume discounts available
