Silicon Carbide Hexagonal Ceramic Tile with NIJ Level III Protection 50mm Flat Hexagon Pressureless Sintered SiC

Mosaic Array Strike Face | 50mm Flat Hex | NIJ Level III

✅ Optimal Packing Density ✅ Reduced Gap Coverage

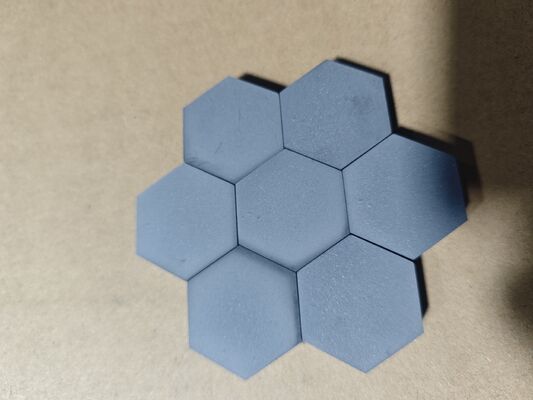

Traditional square tiles leave cross-shaped seams at every corner intersection—potential weak points. The WNRLN SC-50HEX-PS3 hexagonal tile distributes seam lines in a honeycomb pattern, eliminating continuous straight-line gaps. This geometric advantage provides 12-18% higher ceramic coverage density compared to equivalent square tile arrays. Each hex tile is precision-ground to ±0.2mm dimensional tolerance for consistent gap control in automated array assembly.

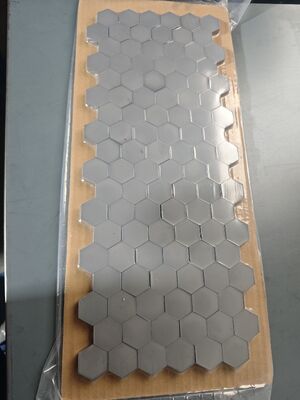

Hexagonal tiles achieve ~90.7% geometric packing efficiency vs ~78.5% for squares of equivalent area, resulting in fewer vulnerable seam intersections and improved multi-hit resistance across the array.

Atmospheric sintered SiC hex tiles cost 50-60% less than equivalent hot-pressed B4C hex tiles while delivering 90% of the ballistic performance. The ideal choice for cost-sensitive volume programs.

At equivalent thickness, SiC hex arrays weigh 16-20% less than Al2O3 hex arrays. This weight saving compounds across larger panel assemblies for vehicle and personnel applications.

Consistent edge chamfer (0.3mm x 45°) on all tiles ensures uniform adhesive bonding gap. Compatible with epoxy, polyurethane, and polysulfide adhesive systems for composite lamination.
