Copper Chromium Master Alloy CuCr 5-10% Content for Electrical Contact Materials with High Recovery Rate ≥95%
商品の詳細:
| 起源の場所: | 湖南省、中国 |
| ブランド名: | High Broad |
| 証明: | ISO 9001:2015, REACH |
| モデル番号: | CuCr-10 |
お支払配送条件:
| 最小注文数量: | 10キログラム |
|---|---|
| 価格: | USD 40-100 / Kilogram |
| パッケージの詳細: | 真空密封された防湿内袋と保護用外箱があり、25kg ファイバードラムまたはお客様の仕様に従って梱包されます。 |
| 受渡し時間: | 注文確認後7-20営業日 |
| 支払条件: | T/T、L/C、ペイパル、ウェスタンユニオン |
| 供給の能力: | 1ヶ月あたり8000キログラム |
|
詳細情報 |
|||
| 形状: | インゴット / 切欠き棒 / 顆粒 | インゴット重量: | 1個あたり0.5～3kg |
|---|---|---|---|
| 合金組成: | CuCr (Cu残部、Cr 5-10%) | 密度: | 8.0～8.6 g/cm3 |
| 融解範囲: | 1100～1200℃ | 回収率: | ≥95% |
| ハイライト: | CuCr Master Alloy Ingot,Chromium Copper Contact Material,Welding Electrode Resistance Alloy |
||
製品の説明

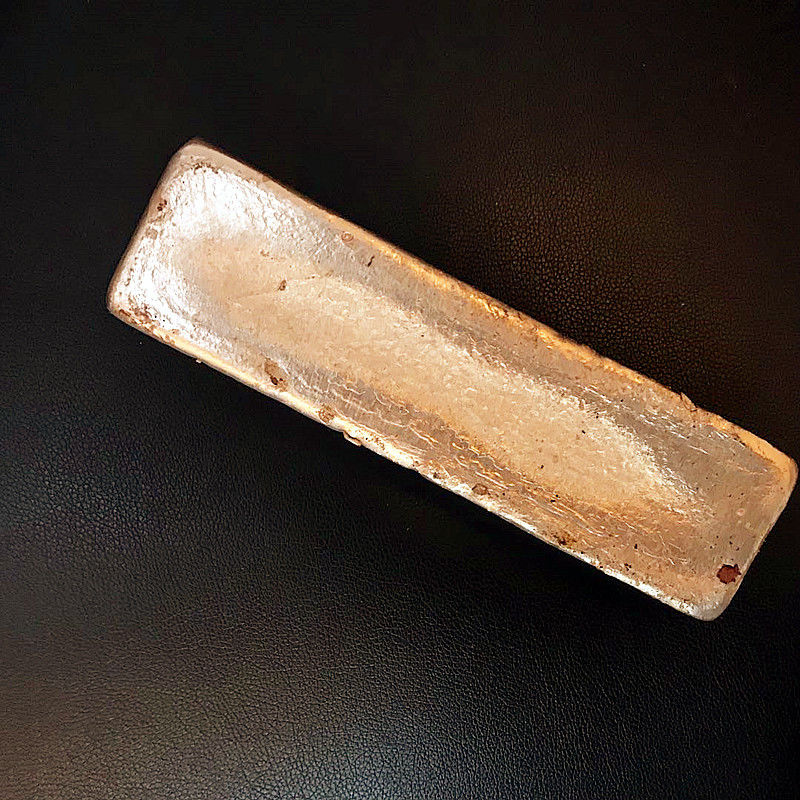

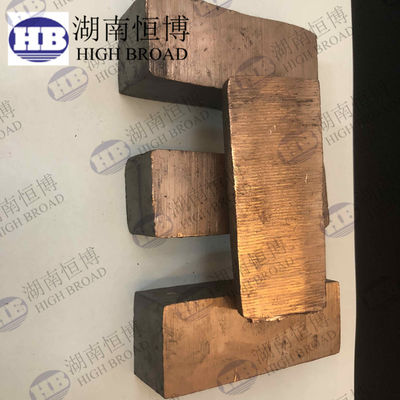

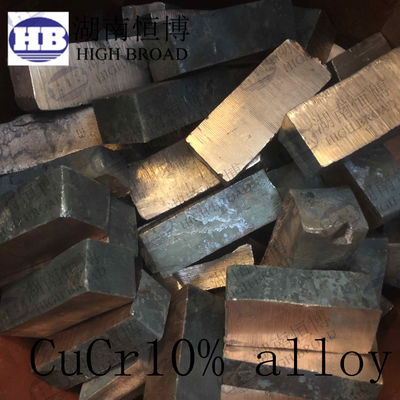

Copper-Chromium (CuCr) Master Alloy
Our Copper-Chromium (CuCr) master alloy is manufactured in China using advanced vacuum induction melting technology with precisely controlled composition. This master alloy is designed for electrical contact materials, resistance welding electrodes, and high-conductivity wear-resistant alloy manufacturing, providing exceptional grain refinement, strength enhancement, and processability improvements in target alloy systems.
Key Features
- Optimized chromium content (5-10%) for balanced conductivity and mechanical strength in CuCr alloys
- Provides excellent wear resistance and arc erosion resistance in electrical contact applications
- High recovery rate (≥95%) ensures cost-effective and predictable alloying results
- Fine and uniform Cr dispersion in copper matrix achieved through controlled solidification process
- Widely used in medium-voltage vacuum interrupters, resistance welding electrodes, and lead frames
Technical Specifications
| Parameter | Specification |
|---|---|
| Alloy Composition | Cu balance, Cr 5-10% (customizable) |
| Form | Ingot / Notched Bar / Granule |
| Ingot Weight | 0.5-3 kg per piece |
| Melting Range | 1100-1200 °C |
| Density | 8.0-8.6 g/cm³ |
| Surface | Metallic reddish-bronze, clean |
| Recovery Rate | ≥95% |
| Packaging | Vacuum sealed moisture-proof |
Recommended Applications
This master alloy is widely used in aerospace, automotive, electronics, and high-performance structural applications where enhanced mechanical properties, improved corrosion resistance, and superior high-temperature performance of the target alloy are required. Suitable for investment casting, sand casting, die casting, and wrought alloy production processes.
Packaging & Storage
Vacuum sealed or argon-protected packaging in moisture-proof aluminum foil bags. Packed in wooden cases or fiber drums according to ingot size and customer specifications. Store in a cool, dry environment away from moisture and corrosive atmospheres.
