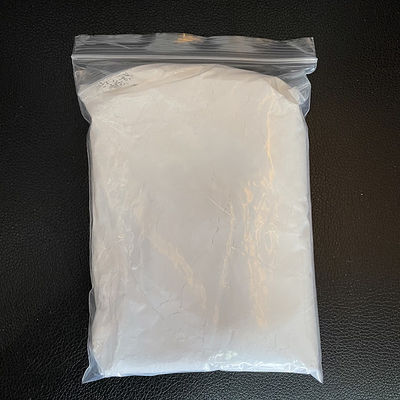

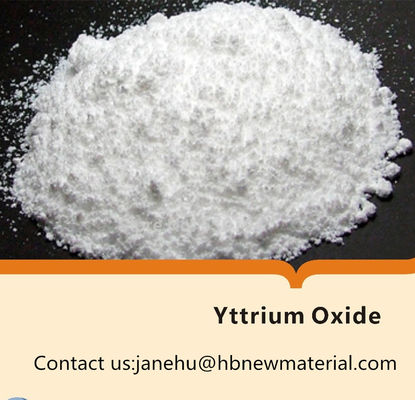

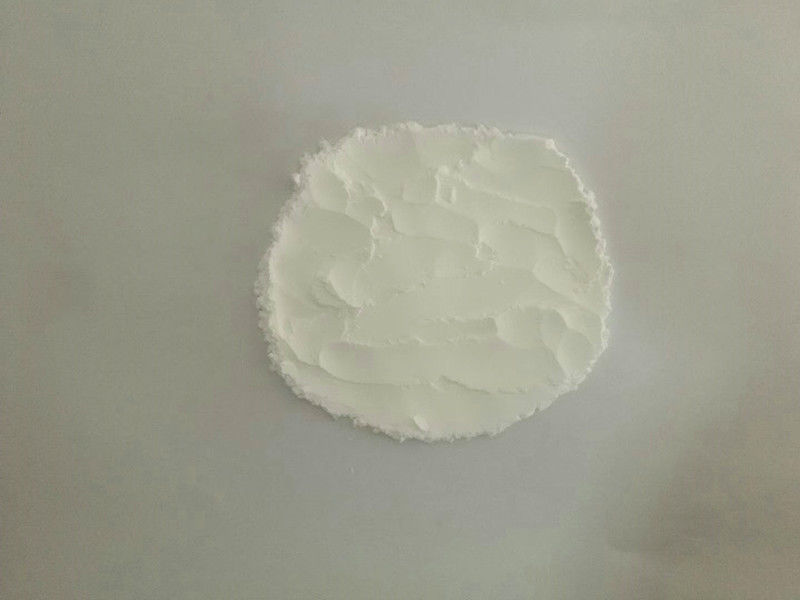

99.999% Purity Yttrium Oxide Powder with D50 5μm Particle Size for Thermal Barrier Coating in Aerospace Applications
商品の詳細:
| 起源の場所: | 江西、中国 |
| ブランド名: | High Broad |
| 証明: | ISO 9001:2015, REACH |
| Model Number: | Y2O3-4N-PS |
お支払配送条件:
| 最小注文数量: | 5キログラム |
|---|---|
| 価格: | USD 60-150 / Kilogram |
| パッケージの詳細: | アルミホイル防湿層を備えた二層真空密封内装パッケージ、25kg ファイバードラムに梱包、または顧客の仕様に従って梱包 |
| 受渡し時間: | 注文確認後5〜15営業日 |
| 支払条件: | T/T、L/C、ペイパル、ウェスタンユニオン |
| 供給の能力: | 5000 キログラム/月 |
|
詳細情報 |
|||
| 粒子サイズ: | 5～25μm | 融点: | 2425 °C |
|---|---|---|---|
| 結晶構造: | キュービック | 密度: | 5.01g/cm3 |
| 純度: | 99.99% (4N) | 流動性: | 優れた (ホール フロー) |
| ハイライト: | 4N Yttrium Oxide Powder,Plasma Spray Coating Grade,Aerospace Turbine Protection |
||
製品の説明
99.999% (5N) Yttrium Oxide (Y₂O₃) Plasma Spray Grade Powder
Our 99.99% (5N) yttrium oxide powder is manufactured in China using advanced rare earth extraction and purification technology. This plasma spray grade Y₂O₃ powder is specifically engineered for plasma spray deposition of thermal barrier coatings on aerospace components, delivering exceptional consistency and performance in demanding industrial coating environments.
Key Features
- 99.99% (5N) purity with tightly controlled rare earth impurity profile
- Optimized 5-25 μm particle size for stable plasma spray feeding and uniform coating buildup
- Excellent high-temperature phase stability up to 2300°C for thermal barrier coating integrity
- Low thermal conductivity combined with high thermal expansion coefficient matching turbine alloys
- REACH compliant and accompanied by full Certificate of Analysis with each batch
Technical Specifications
| Parameter | Specification |
|---|---|
| Purity | 99.999% (5N) |
| Particle Size D50 | 5-25 μm |
| Crystal Structure | Cubic |
| CAS Number | 1314-36-9 |
| Appearance | White Powder |
| Density | 5.01 g/cm³ |
| Melting Point | 2425 °C |
| Flowability | Excellent (Hall Flow) |
Recommended Applications
This yttrium oxide powder is widely used in thermal spray coating, plasma spray deposition, ceramic surface treatment, and other industrial coating processes requiring high purity rare earth materials. Its excellent thermal stability, chemical resistance, and plasma etch resistance make it ideal for protective coatings in harsh operating environments.
Packaging & Storage
Double-layer vacuum sealed with aluminum foil moisture barrier. Packed in 25kg fiber drums with desiccant and humidity indicator card. Store at 15-25°C with relative humidity below 40%.
