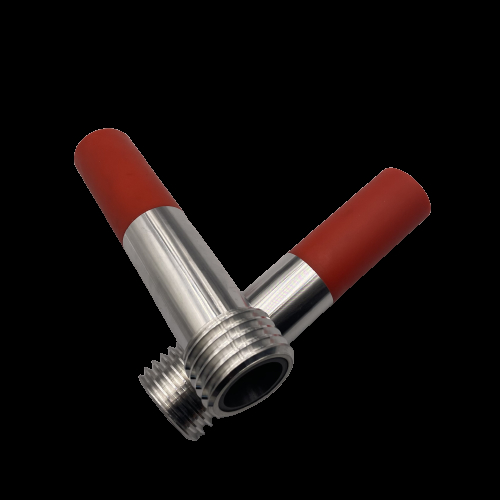

High Temperature Boron Carbide Sandblasting Nozzle with 600°C Max Operating Temperature and Thermal Shock Resistant 30x6mm Straight Bore
商品の詳細:
| 起源の場所: | 湖南省、中国 |
| ブランド名: | High Broad |
| 証明: | ISO 9001:2015 |
| モデル番号: | HB-B4C |
| 書類: | Venturi nozzle Jane.pdf |
お支払配送条件:
| 最小注文数量: | 10個 |
|---|---|
| 価格: | USD 9.00 - 22.00 / Piece |
| パッケージの詳細: | 個別のフォーム裏地付きボックス、防湿性のある輸出グレードの段ボール箱 |
| 受渡し時間: | 在庫に3〜5営業日、生産に15〜20日 |
| 支払条件: | T/T、L/C、ペイパル、ウェスタンユニオン |
| 供給の能力: | 月あたり 50,000 個 |
|
詳細情報 |
|||
| 密度: | ≥2.48 g/cm3 | 最高動作温度: | 600℃ |
|---|---|---|---|
| ノズルの長さ: | 30mm | 最高使用圧力: | 0.8MPa (116PSI) |
| 接続スレッド: | M12x1.5 | 耐熱衝撃性: | 優れた (ΔT ≧ 400°C) |
| ハイライト: | High Temperature Nozzle,Thermal Shock Resistant Sandblast,Heavy Duty Blasting Nozzle |
||
製品の説明
Key Advantages
High Temperature Endurance
Maintains full mechanical strength and wear resistance at continuous operating temperatures up to 600°C. No softening, deformation, or performance degradation in hot blasting environments.
Thermal Shock Proof
Withstands rapid temperature changes exceeding ΔT 400°C without cracking or spalling. Safe for intermittent hot-surface blasting where thermal cycling is unavoidable.
Focused Straight Bore
30mm straight bore with 6mm diameter concentrates abrasive energy into a tight, high-impact stream. Ideal for spot blasting, weld cleaning, and precision rust removal on hot surfaces.
Heavy Duty Construction
Thick-walled B4C ceramic body withstands high-pressure blasting at 0.8 MPa. Designed for the toughest foundry, shipyard, and steel mill environments.
Technical Specifications
| Material | Boron Carbide (B4C) Ceramic |
| Nozzle Type | Straight Bore |
| Bore Diameter | 6mm |
| Nozzle Length | 30mm |
| Max Temperature | 600°C |
| Thermal Shock ΔT | ≥400°C |
| Hardness | ≥2800 HK (Knoop) |
| Max Operating Pressure | 0.8 MPa (116 PSI) |
Applications
- Foundry casting cleaning and descaling at elevated temperatures
- Hot forging scale removal and surface preparation
- Steel mill roll and equipment maintenance blasting
- Heat exchanger tube and boiler cleaning
- Weld seam cleaning on preheated heavy steel structures
