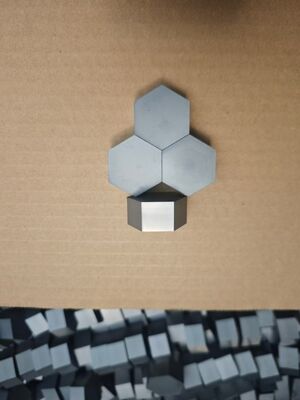

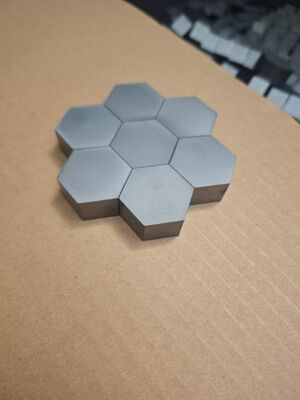

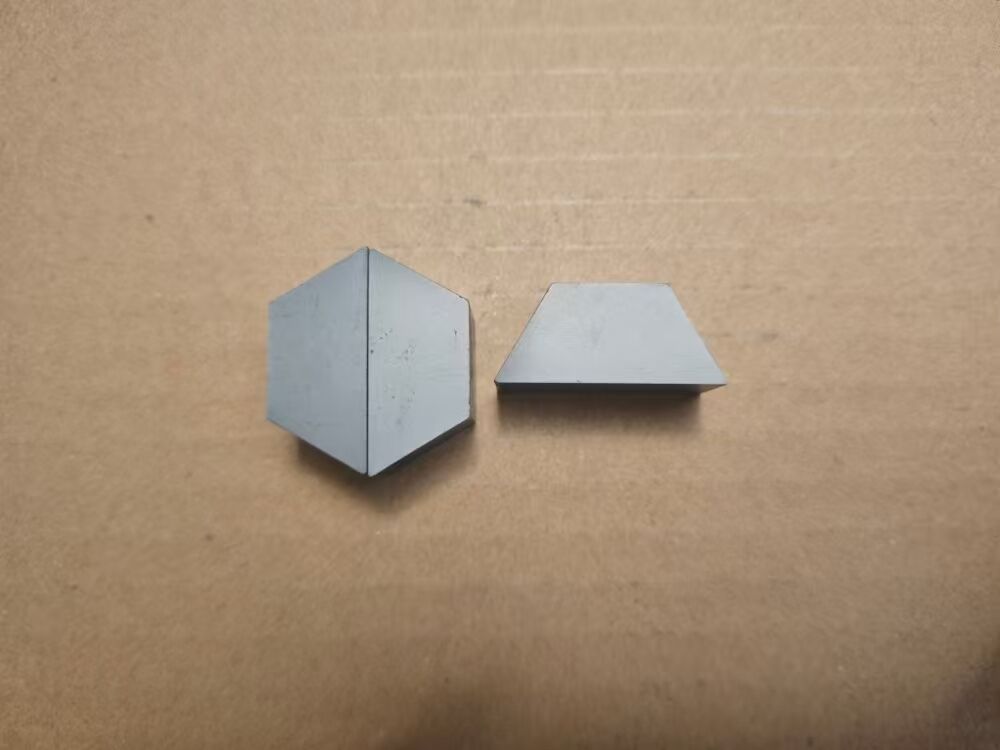

Silicon Carbide Plate NIJ Level III with 2600 HV Hardness and 6-Round Multi-Hit Capability
商品の詳細:
| 起源の場所: | 湖南省、中国 |
| ブランド名: | High Broad |
| 証明: | NIJ 0101.06 Level III, ISO 9001:2015 |
| モデル番号: | HB-SIC-3A-1012 |
| 書類: | SIC Ballistic Armor Tiles-P...ad.pdf |
お支払配送条件:
| 最小注文数量: | 10個 |
|---|---|
| 価格: | USD 45-65 / Piece |
| パッケージの詳細: | 段ボール箱による個別の EPE フォーム包装、輸出グレードの合板パレット |
| 受渡し時間: | サンプルの場合は 5 ～ 7 営業日、大量注文の場合は 15 ～ 25 日 |
| 支払条件: | T/T、L/C、Western Union、PayPal |
| 供給の能力: | 月あたり5000個 |
|
詳細情報 |
|||
| NIJ保護レベル: | レベル III (7.62x51mm M80 NATO) | 硬度: | 2600 HV (ヌープ) |
|---|---|---|---|
| 重さ: | 2.2kg(単板) | 動作温度: | -40℃～+70℃ |
| 密度: | 3.15g/cm3 | 面積密度: | 22.5kg/㎡ |
| ハイライト: | SiC Bulletproof Plate NIJ III,Alumina Alternative Ceramic Armor,Cost-Effective Hard Armor Insert |
||
製品の説明
Silicon Carbide NIJ Level III Protection Plate — The Smart Alumina Alternative
Why Choose Silicon Carbide Over Alumina Oxide?
| Property | Silicon Carbide (SiC) | Alumina Oxide (Al₂O₃) | Advantage |
|---|---|---|---|
| Hardness (Knoop) | 2,600 HV | 1,800-2,000 HV | SiC: 30%+ Harder |
| Density | 3.15 g/cm³ | 3.90 g/cm³ | SiC: 20% Lighter |
| Multi-Hit Rating (NIJ III) | 6 Rounds M80 Ball | 3-4 Rounds M80 Ball | SiC: 50%+ Better |
| Cost Ratio | Moderate | Low | SiC: Superior ROI |
| Fracture Toughness | 3.5-4.0 MPa·m½ | 3.0-3.5 MPa·m½ | SiC: Better Crack Resistance |
| Plate Weight (10x12 in) | ~2.2 kg | ~2.8-3.2 kg | SiC: ~25% Lighter |
Our HB-SIC-3A-1012 Silicon Carbide plate delivers the sweet spot between performance and affordability. While alumina oxide plates are the cheapest ceramic armor option, their lower hardness and higher density force users to accept heavier weight and limited multi-hit protection. Silicon Carbide bridges the gap: you get near-boron-carbide performance at a fraction of the cost, with dramatically better protection than alumina.
Key Features
- NIJ 0101.06 Level III Certified: Stops 7.62*51mm M80 NATO ball ammunition at 2,780 fps (847 m/s)
- 2600 HV Knoop Hardness: Shatters incoming projectiles on impact, dissipating energy across the ceramic strike face
- 6-Round Multi-Hit Capability: Tested and certified to withstand multiple strikes within a 120mm dispersion area
- UHMWPE Composite Backing: Captures fragments and reduces backface deformation to below 25mm
- Single Curve Shooter Cut: Ergonomic design for comfortable wear in plate carriers and tactical vests
- 25% Weight Reduction vs Alumina: At just 2.2 kg per plate, operators stay agile during extended missions
Applications
- Law Enforcement Patrol and SWAT Operations
- Private Security and Executive Protection
- Civilian Personal Defense
- ProtectiveTraining and Garrison Use
Upgrade from alumina to Silicon Carbide today — better protection, lighter weight, and truly competitive pricing.
Contact us for bulk order pricing and OEM customization options.
