詳細情報 |
|||
| 陽極の種類: | ケーブル選択可能な MMO リニア アノード | ケーブルオプション: | HMWPE / XLPE-PVC / Kynar-HMWPE |
|---|---|---|---|
| 選択サポート: | 無料の土壌分析レビュー | HMWPE 評価: | pH 5 ～ 9、< 75°C |
| XLPE/PVC 定格: | pH 3 ～ 12、< 90°C | Kynar/HMWPE の評価: | pH 2～14、耐薬品性 |
| ハイライト: | 多ケーブルMMO線形アノード,HMWPE XLPE キナー CPケーブル,土とマッチした保温アノード |
||
製品の説明

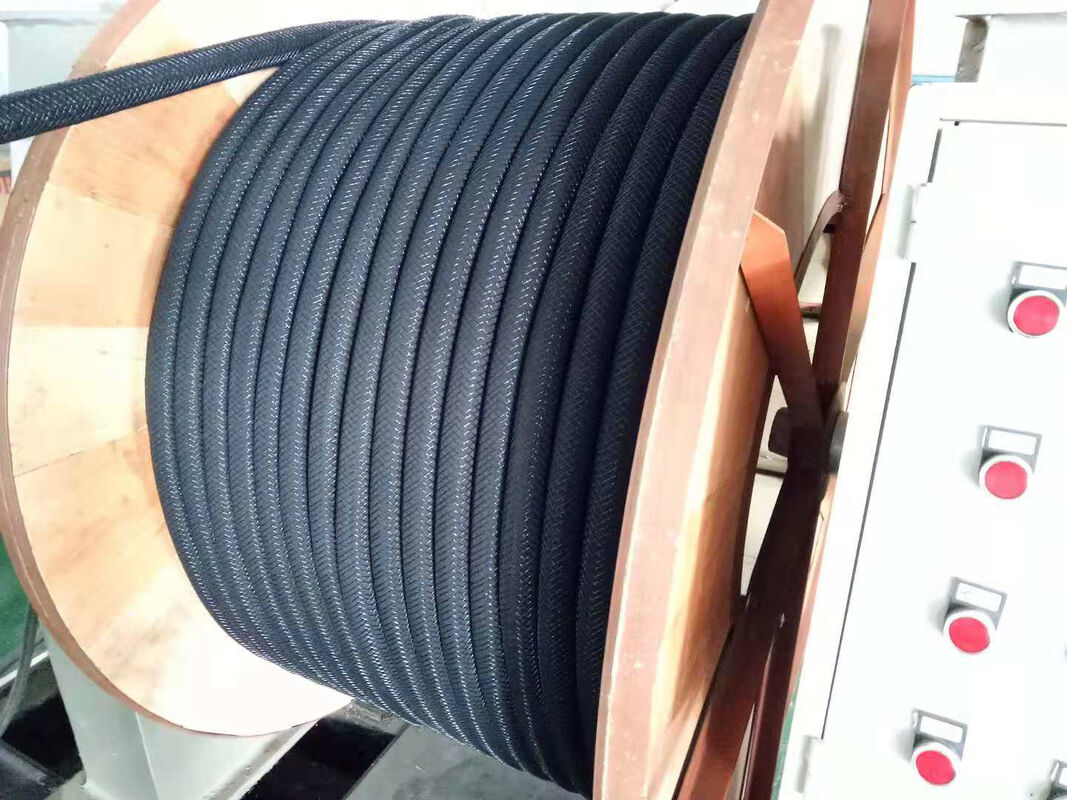

Cable-Selectable MMO Linear Anode System
One anode design does not fit all soil conditions. Our cable-selectable MMO linear anode system allows engineers to match cable insulation to site-specific soil chemistry, maximizing system life and reliability without over-specifying.
Cable Selection Guide
| Insulation | Best For | Limitations |
|---|---|---|
| HMWPE | Standard buried service, neutral to mildly acidic soils (pH 5-9), general moisture resistance | Not recommended for organic solvent exposure or temperatures above 75°C |
| XLPE/PVC | Higher temperature soils (up to 90°C), wet environments, good chemical resistance | PVC outer layer may degrade in highly alkaline soils (pH > 12) |
| Kynar/HMWPE | Aggressive chemical environments, acidic soils (pH 2-5), refinery and chemical plant sites | Higher cost; specify only when required by soil chemistry |
Selection Support
We provide complimentary soil analysis review — send your site soil resistivity and chemistry data, and our engineering team recommends the optimal cable configuration. No charge, no obligation.
The anode core (MMO/Ti wire, coke backfill, splice connections) remains identical across all cable options, ensuring consistent CP performance regardless of cable selection.
Applications
- Projects with variable soil conditions along route
- Sites requiring cost-optimized cable specification
- Retrofit projects with known soil chemistry history
