詳細情報 |
|||
| 陽極の種類: | HDD プルスルー定格 MMO リニア | 引張定格: | > 5kN 連続引張 |
|---|---|---|---|
| 最小曲がり半径: | 50メートル | ジャケット: | 多層強化、耐摩耗性 |
| 繋がり: | オーバーモールドストレインリリーフスプライス | インストール: | キャリアパイプとの同時プルバック |
| ハイライト: | HDD プルスルー MMO アノード、方向性ドリル パイプライン CP、川横断フレキシブル アノード,Directional Drill Pipeline CP,River Crossing Flexible Anode |
||
製品の説明

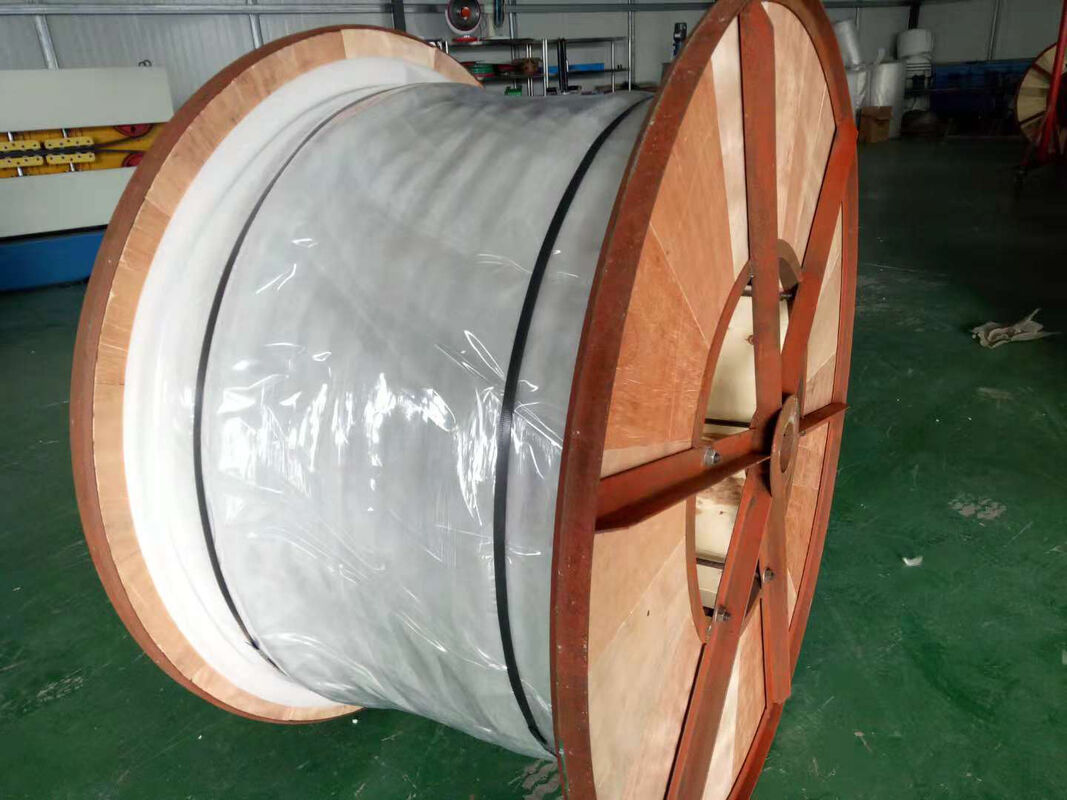

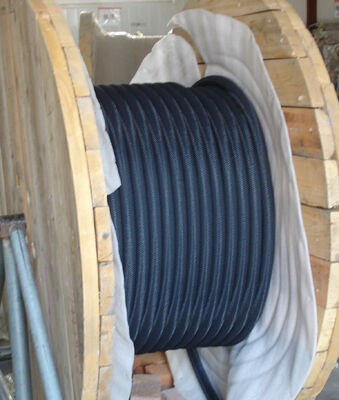

HDD-Rated MMO Flexible Linear Anode
Standard linear anodes cannot survive horizontal directional drilling installation. Our HDD-rated anode is engineered from the ground up for the extreme mechanical demands of pull-through operations — river crossings, highway underpasses, and urban infrastructure projects.
HDD-Specific Engineering
Reinforced Jacket: Multi-layer construction with internal friction-reducing layer to minimize pull force and external abrasion-resistant layer to withstand bore wall contact. Tensile rating exceeds 5kN continuous pull force.
Flexible Core Design: Stranded copper conductor with enhanced flexibility accommodates bore path curvature radii as tight as 50 meters without conductor damage or insulation cracking.
Connection Reinforcement: Splice connections are over-molded with additional mechanical strain relief to survive the tension spikes that occur during pipe pullback operations.
Installation Process
Anode is attached to the pipeline and pulled through the bore hole simultaneously with the carrier pipe. Once in position, the anode provides continuous CP along the entire HDD section — protection where traditional groundbed anodes cannot reach.
Applications
- River and waterway pipeline crossings
- Highway and railway underpass CP
- Urban infrastructure HDD installations
- Environmentally sensitive area crossings
